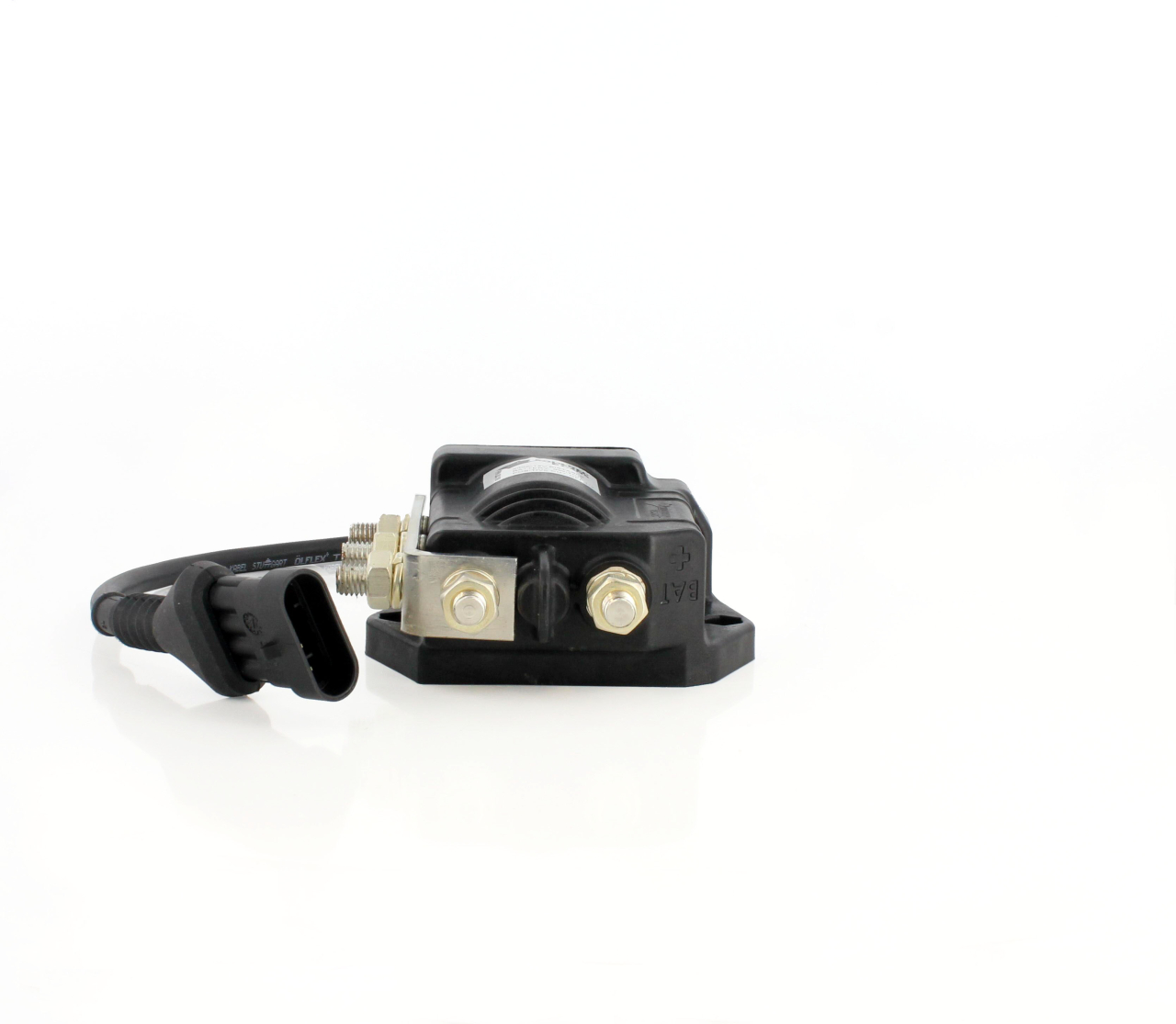

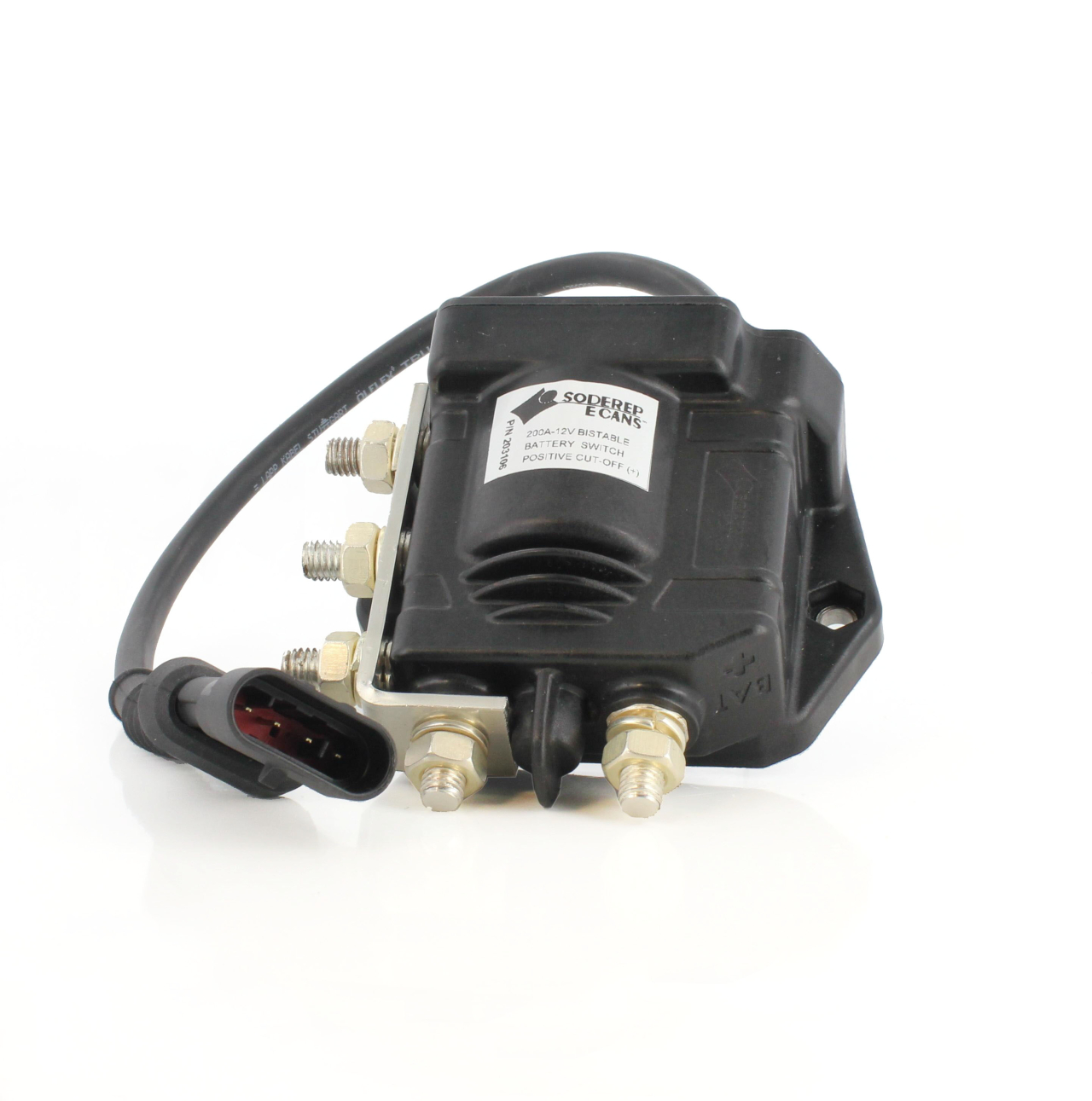

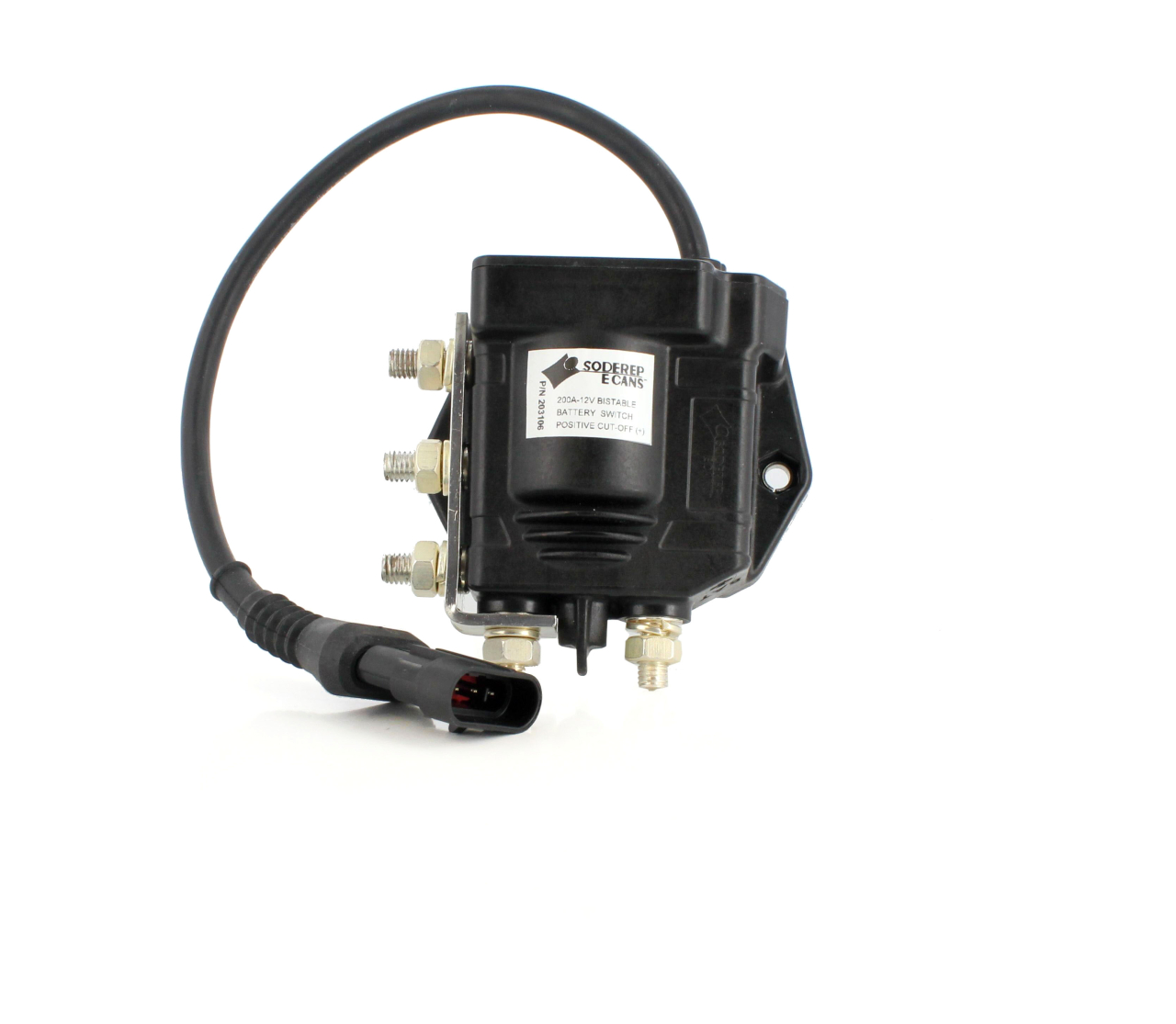

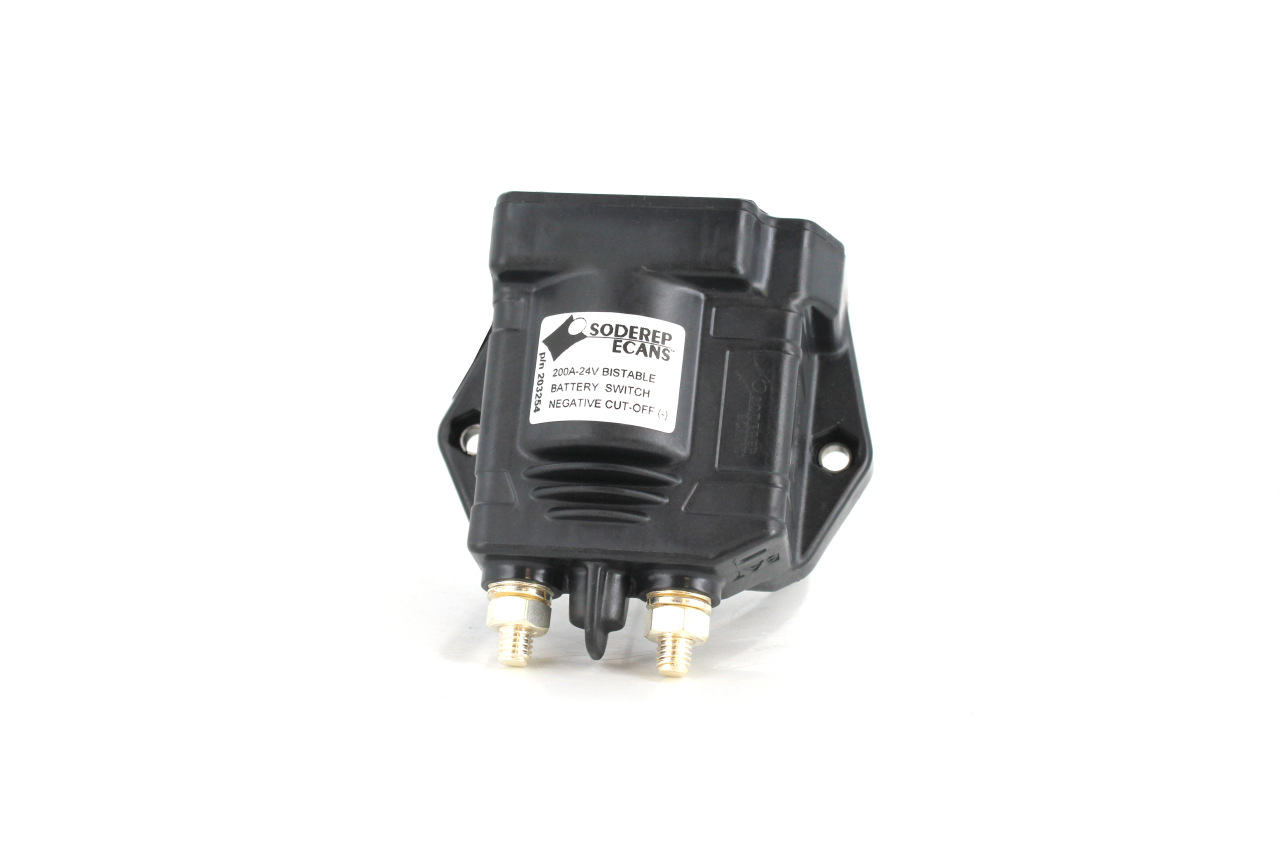

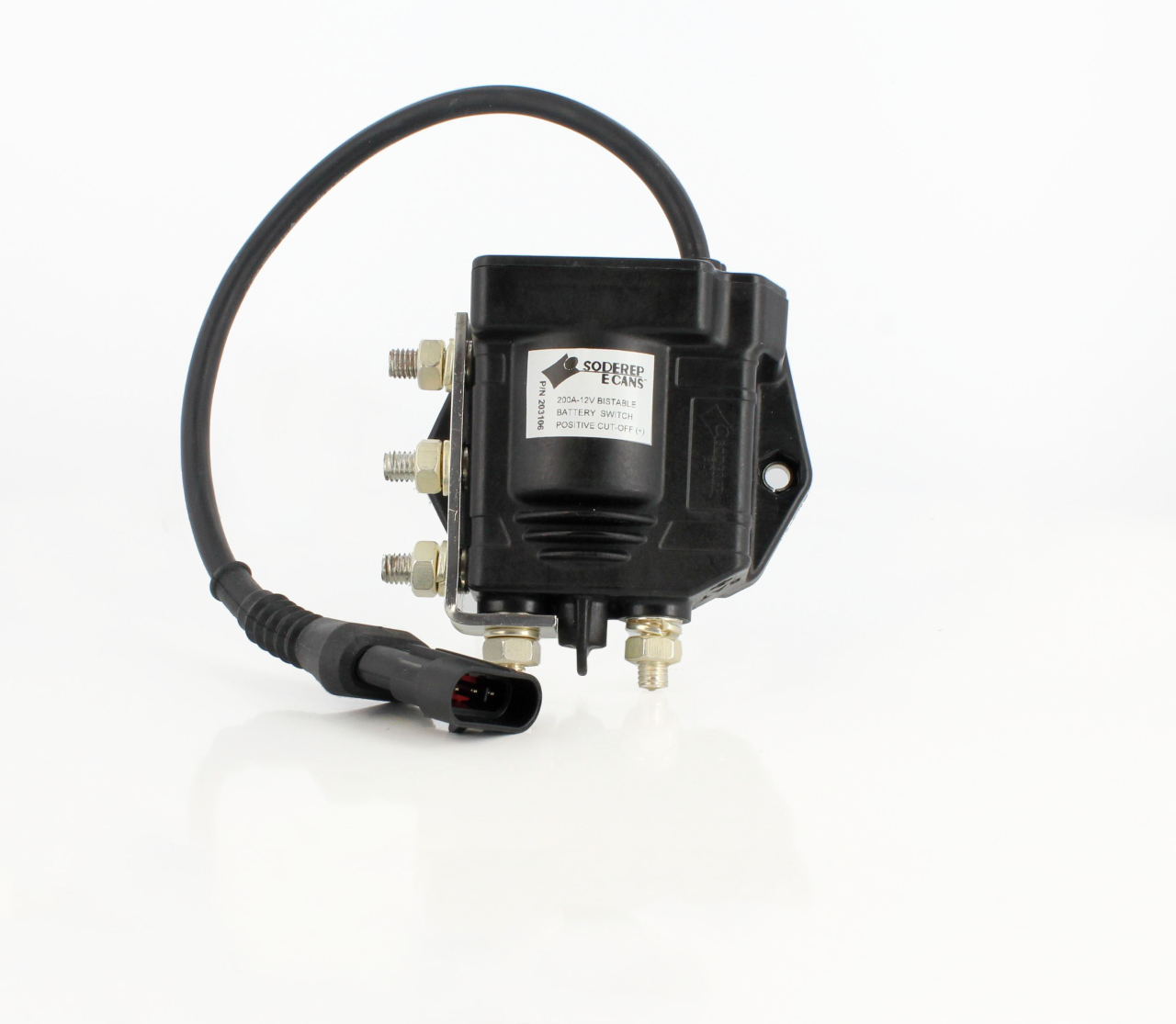

BISTABLE SINGLE POLE BATTERY MAIN SWITCH S220 SERIES 200A 12V OR 24V
SERIE S220
Electrical control - Control signal ON-OFF - Positive or negative cut off - Configurable opening delay - Waterproof protection
The S220 series belongs to our SODEREP-ECANS bistable single pole battery switch range. S220 series, our last released series equiped with Bi-stable technology, includes battery switches with a continuous rating of 200 A and a maximum voltage of 12 to 24 V, fitted with a control signal ON-OFF and with a configurable opening delay and with a high protection degree IP65 and IPX9K. S220 switches, fitted with silver platted M8 terminals and with a superseal connector, are designed in a new black reinforced thermoplastic compacted housing
Technical characteristics of the series
Continuous Rating
200A
Number of Poles
Single pole
Nominal Voltage (V)
16V | 32V
Polarity
Positive and negative
Protection Degree
IP65 | IPX9K
Hole diameter
M8
Series Products
203255 / BISTABLE SINGLE POLE BATTERY MAIN SWITCH S220 SERIES
See the product
203254 / BISTABLE SINGLE POLE BATTERY MAIN SWITCH S220 SERIES
See the product
203106 / BISTABLE SINGLE POLE BATTERY MAIN SWITCH S220 SERIES
See the product
203105 / BISTABLE SINGLE POLE BATTERY MAIN SWITCH S220 SERIES
See the product
